ASTM Carbon steel support plate,baffle plate for heat exchanger
1, Products:
Pressure vessel baffles,boiler baffles,steam turbine baffles,marine boiler baffles,locomotive boiler baffles,high pressure boiler baffle,power station boiler baffle
2, Products reference:
| Material | 20MnMo,20MnMoNb,16MnD,Q345D |
| Max dia | 5000MM |
| Application | Baffle plate is widely used for tube type heat exchange,boiler,pressure vessel,steam turbine,locomotive,power station,big scale central air conditioning industry |
| Melting process | Hot rolled |
| Production process | Cutting+rough machining+finish machining |
| Pack | Film |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN ,PED,ASE |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO,BV,SGS,IST,UL.CTI |
| Delivery terms | Cutting;finish machining |
| Test machine | Spectrograph,UT device,tensile and compact tes machine,metalloscope,outside mircometer,bore dial indicator,hardness test machine |
| Service | Our service included the cutting, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
3, Custom properties
| Material elements | C | Si | Mn | P | S | Cr | Ni | Mo | Nb |
| 16MnD | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 20MnMo | 0.17-0.23 | 0.17-0.37 | 1.10-1.40 | ≤0.025 | ≤0.015 | ≤0.030 | ≤0.030 | 0.20-0.35 | |
| 20MnMoNb | 0.16-0.23 | 0.17-0.37 | 1.20-1.50 | ≤0.035 | ≤0.035 | | | ≤0.035 | 0.20-0.45 |
| Mechanical property | Dia.(mm) | TS/Rm(Mpa) | YS/Rp0.2(Mpa) | EL/A5(%) | RA/Z(%) | Type Of notch | Impact energy | HBW |
| 16MnD | Ø10 | 470-630 | ≥345 | ≥21 | -- | V | -- | |
| 20MnMo | Ø10 | ≥605 | ≥475 | ≥25 | -- | V | -- | |
| 20MnMoNb | Ø10 | ≥635 | ≥490 | ≥15 | -- | U | -- | |
4. Process procedure:
Process flow quality control: Raw material steel plate into warehouse(test the chemical content) → Cutting→ Welding→ Machining→ Inspection(mechanical properties, hardness)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
5th, Commerce clause
| MAX weight | 60T |
| MOQ | 1PC |
| Delivery time | 30-50Days |
| Package | Plywooden case,wooden pallet,steel frame |
| Delivery terms | FOB;CIF;CFR；DDU； |
| Payment terms | T/T,LC |
| Type of shipping | By ocean,air |
6, Keywords
Baffle plate is mainly used for chemical vessel,for example tube type heat exchange,pressure vessel,boiler,condenser,central air conditioning,evaporimeter,when sea water desalination to support and fix tubulation,Thanks to metal material it’s not only very strong rigity,but aslo good heat conduction
Note:
High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection;
Quality full service.
Product Tags:
|
|

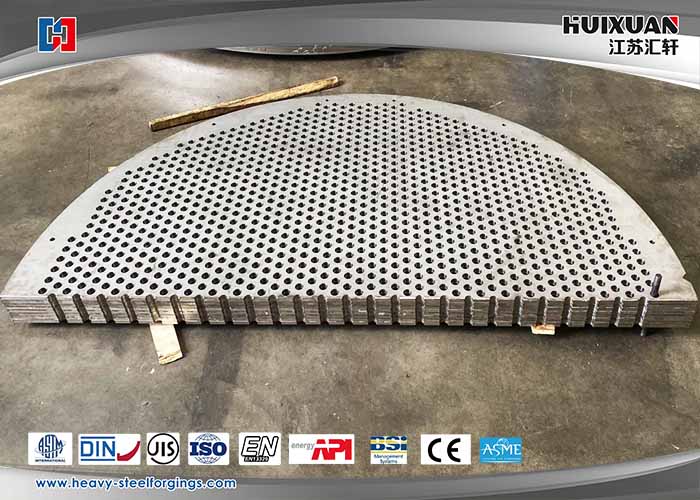

5000mm ASTM Carbon Steel Heat Exchanger Baffle Plate Images
|
