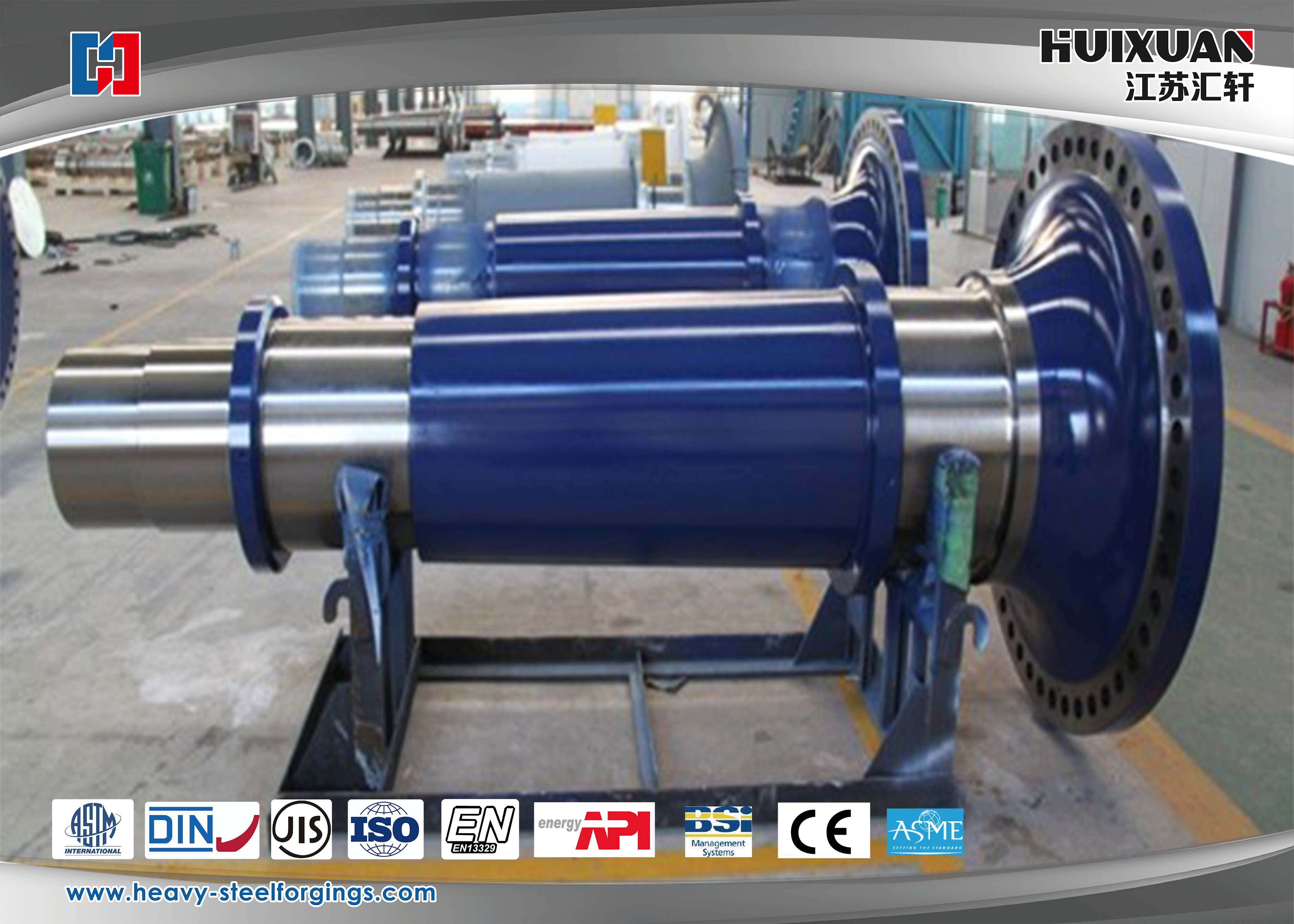

Large Steam Turbine Rotor Forging Wind Power Generation Turbine Main Shaft

Name: Large Steam Turbine Rotor Forging Wind Power Generation Turbine Main Shaft
Brand: HUIXUAN
Price: 1 USD

Buy cheap Large Steam Turbine Rotor Forging Wind Power Generation Turbine Main Shaft product

Brand Name : HUIXUAN

Model Number : GE draught fan

Certification : ASTM，ASME，DIN，JIS，ISO，BS，API，EN

Place of Origin : JiangSu

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000-4000 Ton/Month

Delivery Time : 30-50 days

Packaging Details : Plywood case,wood pallet,steel frame

Material : Steel

Heat treatment : N+T Q+T

Max power : 5MW

Melting process : EF+LF+VD

Size : As drawing

Application : Machinery parts

Contact Now

Large Steam Turbine Rotor Forging Wind Power Generation Turbine Main Shaft

Products:

wind power generation main shaft,GE draught fan,wind power turbine shaft, 34CrNiMo6 main shaft,coupling,wind power generation forging

Products reference:

Material	34CrNiMo6,18CrNiMo7-6,4140
Max power	5MW
Application	In main engine box of wind power generation,blades rotate main shaft by wind energy,connect to accelerator
Melting process	EF+LF+VD
Production process	Forging+heat treatment+rough machining+finish machining
Forging ratio	≥3.5
Applicable standard	ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard	JB/GB/EN/DIN/JIS/ASME/ASTM/ISO
Certification authority	ISO,BV,SGS, IST, UL,CTI
Delivery term	Rough machining(N+T);finish machining(Q+T)
Test equipment	Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine
Service	Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

3, Custom properties

Material elements	C	Si	Mn	P	S	Cr	Ni	Mo	Others
34CrNiMo6	0.30-0.38	≤0.040	0.50-0.80	≤0.035	≤0.035	1.30-1.70	1.30-1.70	0.15-0.30
4140	0.38-0.43	0.15-0.35	0.60-0.90	≤0.035	≤0.040	0.80-1.10	--	0.15-0.25	-
18CrNiMo7-6	0.15-0.21	0.17-0.35	0.50-0.90	≤0.025	≤0.025	1.50-1.80	1.40-1.70	0.25-0.35

Mechanical property	Dia.(mm)	TS/Rm(Mpa)	YS/Rp0.2(Mpa)	EL/A5(%)	RA/Z(%)	Type Of notch	Impact energy	HBW
34CrNiMo6	Ø15	750-900	450-600	≥13	≥55	V	-40℃≥20	≤269HBS
4140	Ø10	740~1000	450~850	≥12	≥25	V	≥40	≤250HBS
18CrNiMo7-6	Ø15	≥980	≥785	≥9	≥40	V	≥47	≤269HBS

Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment

Commerce clause

Max weight	35T
MOQ	1PC
Delivery time	30-50 days
Package	Plywood case,wood pallet,steel frame
Delivery term	FOB;CIF;CFR；DDU；
Payment terms	T/T,LC
Type of shipping	By ocean,air

Keywords:

Large middle small type wind power main shaft forging, 0.8MW;1.2MW;2MW;3.MW;3.6MW;5MW various large middle small draught fan shaft
